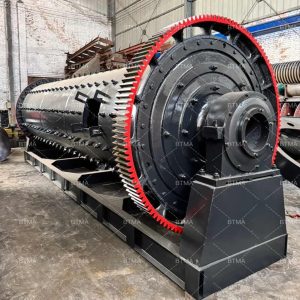

The 1500×5700 ball mill is a high-efficiency and energy-saving grinding machine widely used in mining, construction materials, and chemical industries. With stable performance and excellent grinding capability, this model is highly favored by customers.
1. Technical Specifications
-
Drum Diameter: 1500 mm
-
Drum Length: 5700 mm
-
Grinding Media Load: Approx. 15 tons
-
Motor Power: 160 kW
-
Capacity: 3–5 tons/hour (depending on material)
-
Rotating Speed: 26 r/min
2. Key Features
-
Robust Structure: The drum is made of high-quality steel plates, ensuring durability and long service life.
-
High Grinding Efficiency: Optimized liner design and ball loading ratio for better grinding results.
-
Stable Operation: Gear-driven system ensures smooth and reliable performance with easy maintenance.
-
Wide Application: Suitable for grinding ores, cement, limestone, coal, and various other materials.
3. Application Areas
This ball mill is ideal for small to medium-sized mineral processing plants, cement plants, and ceramics factories. It supports both continuous and batch grinding operations.
4. Customization Options
We offer tailored solutions including motor selection, voltage adjustments, liner material customization, and on-site installation and support services.
